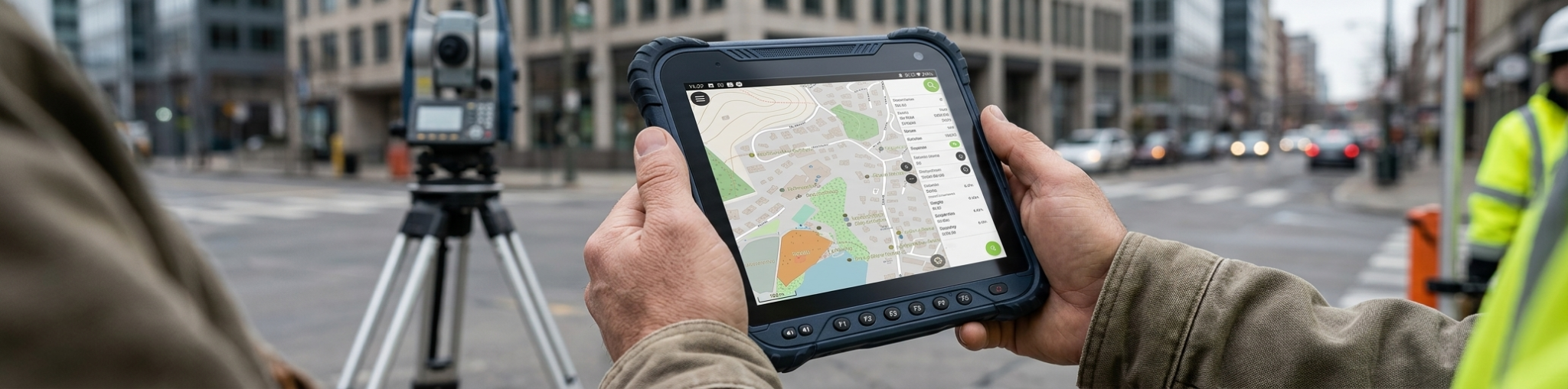

Introducing the T10 Multi-Frequency GNSS Tablet
The SingularXYZ T10 multi-frequency GNSS tablet is a professional, rugged device engineered for field operations, surveying, GIS, and industrial projects. With a large 10.1-inch display, a powerful processor, Android 12, a high-capacity battery, and a ruggedized housing, this device is built to perform reliably in harsh environmental conditions.
Supporting diverse connectivity options and the ability to connect to external GNSS equipment, the T10 tablet is a practical solution for geospatial data collection, field project management, and running specialized surveying software.
Large 10.1-inch Display
The T10 multi-frequency GNSS tablet features a large 10.1-inch touchscreen. This display offers excellent readability in outdoor environments under direct sunlight, rendering maps, spatial data, and field forms with high clarity.
The T10 display also supports reliable operation with gloves or wet hands. This feature ensures that users have a smoother, faster, and more precise interaction with the device in real-world project conditions.
Smooth Performance with an 8-Core Processor
Powered by an 8-core processor and the Android 12 operating system, the T10 multi-frequency GNSS tablet delivers fast and stable performance. This hardware and software combination ensures the smooth execution of GIS, surveying, and field data management software.
Multitasking capabilities on the T10 multi-frequency GNSS tablet allow users to run several applications simultaneously, making the T10 a reliable choice for professional workflows in field projects.
All-Round Connectivity and Reliable Data Transfer
The T10 multi-frequency GNSS tablet supports a comprehensive set of communication capabilities. Equipped with 4G, Wi-Fi, Bluetooth, USB Type-C, and NFC, it enables fast and stable data transfer.
These connectivity options allow the tablet to easily interface with external GNSS receivers and other field equipment. Consequently, users can transfer project data without disruption and maintain a more integrated workflow.
Rugged Industrial Design with IP68 Standard
The T10 multi-frequency GNSS tablet is built with a rugged chassis and industrial design to perform reliably in demanding environments. It features an IP68 protection rating, offering high resistance against dust and water ingress.
This resistance to harsh environmental conditions makes the T10 tablet a simpler and more reliable choice for projects in civil engineering, surveying, mining, infrastructure, and outdoor operations.
9000mAh Battery for All-Day Operation
The T10 multi-frequency GNSS tablet is equipped with a powerful 9000mAh battery. Designed to support long-term field operations, it enables stable performance throughout long working hours.
The high battery capacity of the T10 multi-frequency GNSS tablet reduces work stoppages and the need for frequent recharging—a critical advantage for projects in remote or open-field environments.
Customizable Expandability via GPIO Interface
One of the professional features of the T10 multi-frequency GNSS tablet is its hardware expandability via an internal GPIO interface. This interface is accessible through the Pogo-pin port and enables connection to external equipment.
This feature allows users to configure the device to meet specific project requirements. Therefore, the T10 GNSS tablet is a flexible option for specialized applications, custom projects, and diverse field operations.
System
Operation System: Android 6.0
CPU: Quad-Core 1.5GHZ
RAM: 2GB
ROM: 16GB
Flash: T flash, up to 64GB
DISPLAY
LCD: 10.1″ HD
Brightness: 750Nits, sunlight readable
Resolution: 1024×600 pixels
Touch Panel: Capacitive screen
GNSS
Channels: 1408
GPS: L1C/A, L2P (Y), L2C, L5
GLONASS: G1, G2
BDS: B1I, B2I, B3I
Galileo: E1, E5a, E5b
QZSS: L1, L2, L5
RTK Accuracy:
– H: 8mm+1ppm
– V: 15mm+1ppm
Heading Accuracy: 0.1°
Timing Accuracy: 20ns
Velocity Accuracy: 0.03m/s
Data Format: RTCM V3.X, NMEA-0183
Data Update Rate: Maximum 20Hz
Communication
WIFI: 2.4GHz IEEE 802.11 a/b/g/n
4G:
FDD-LTE(Band 800 / 1800 / 2100 / 2600 MHz)
TD-LTE(Band 1900 / 2300 / 2500 / 2600 MHz)
WCDMA(Band 850 / 900 / 1900 / 2100 MHz)
GSM/GPRS/EDGE(Band 850 / 900 / 1800 / 1900 MHz)
Bluetooth: V4.1
USB Port: 1×USB2.0 (Host & Debug)
Input voltage: 9-36 VDC
Power consumption: ≤4.5W
Size: 281×181×42mm
Weight: 1.5 Kg
Voltage & Housing
Serial Port: 2×RS232, 1×RS485
CAN Port: 2×CAN (J1939, CANOpen, ISO15765)
Ethernet: 1×RJ45(100M Ethernet)
Environmental Conditions
Waterproof & dustproof: IP65
Shock: Designed to survive a 2m drop onto concrete
Operating temperature: -20 °C to + 70 °C (-4 °F to 158 °F)
Storage temperature: -40 °C to + 85 °C (-40 °F to 185 °F)
Humidity: 100% non-condensing
