SAGRO200 AUTOMATED STEERING SYSTEM
Smart Antenna Design, Simply Your Farming
±2.5CM AUTO-STEERING
With S200 GNSS receiver that equipped with full-constellation GNSS and gyroscope sensor, SAgro200 system provides ±2.5cm pass-to-pass accuracy, improving your farming efficiency and quality while freeing your hands.
HIGHLY-INTEGRATED
Introducing smart antenna design, the S200 GNSS receiver has integrated GNSS antenna, GNSS module, gyroscope and radio* together, streamlining the SAgro200 system to just three main components – a console tablet, motor steering wheel and GNSS smart antenna.
30MIN SIMPLE INSTALLATION
The highly-integrated system reduces installation complexity while enhancing overall system stability & compatibility, and seamless transferability between tractors. The SAgro200 system can be easily installed in less than 30 minutes.
ABUNDANT WORK MODES
For different farm shape, terrain types and working tasks, SAgro200 software supports abundant work modes for your convenience, such as straight line, curve, U-turn, pivot, etc.
HIGHER YIELD LESS COST
With SAgro200 auto-steering system, farmers do not need to concentrate on driving and can work continuously for longer, which means less fatigue and higher efficiency. The ±2.5 cm accuracy also maximizes land use and yield while saving resources such as water and fertilizer.
HIGH COMPATIBILITY

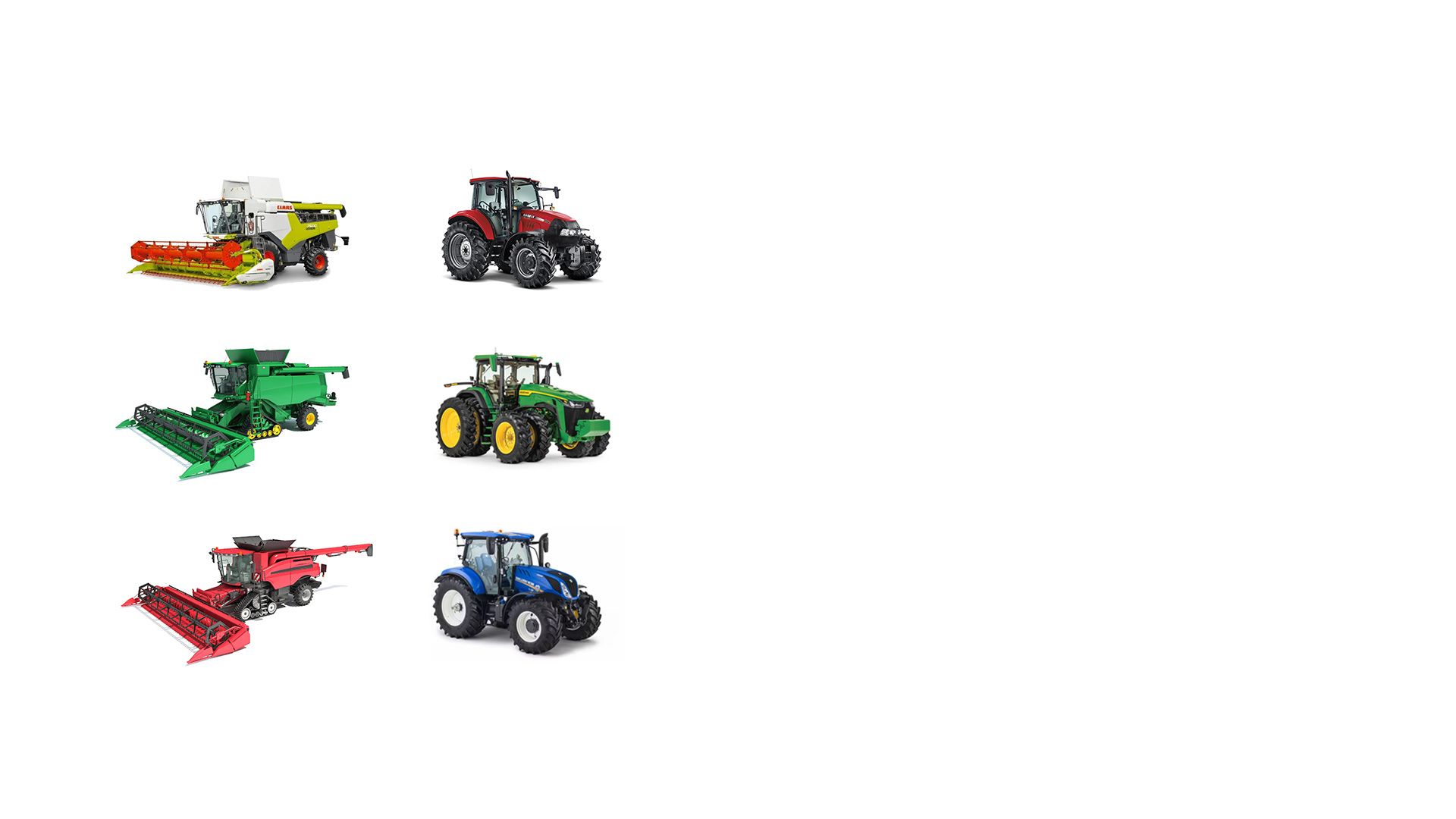

Highly-integrated system components can be easily installed on and transferred between different tractor models, various spline sleeves for different tractor steering columns, SAgro200 system shows high compatibility with mainstream tractors in the market.
MULTIPLE TASK TYPES
From spring to winter, from harrowing to sowing, spraying, and harvesting, farmers can set different implement types and working modes in SAgro200 to meet your farming needs throughout the year.
SMART FARM MANAGEMENT
Smart farm management of SAgro200 system makes your farming more clear and less human errors. Farms and plots management is suitable for large farm owner. Real-time work records can clarify work progress and prevent duplication of work.
SATELLITES TRACKING
Channels: 1408
GPS: L1C/A, L1C, L2C, L2P(Y), L5
BDS: B1I, B1C, B2a, B2I, B3I
GLONASS: G1, G2, G3
Galileo: E1, E5a, E5b, E6
QZSS: L1C/A, L1C, L2C, L5
NavIC: L5
SBAS: L1C/A
SBAS: WAAS, EGNOS, SDCM, BDSBAS, GAGAN
L-Band: Support
Cold start: <30s
RTK Initialization Time: <5s(typical)
RTK initialization reliability: >99.9%
Re-acquisition: <1s
ACCURACY
Standalone:
– 1.5m Horizontally
– 2.5m Vertically
DGPS:
– 0.4m Horizontally
– 0.8m VerticallyStatic post-processing:
Static post-processing:
– 2.5mm+0.5ppm Horizontally
– 5mm+0.5ppm Vertically
RTK:
– 8mm+1ppm Horizontally
– 15mm+1ppm Vertically
PPP:
– 5 cm Horizontally
– 10 cm Vertically
SBAS: < 1.0 m 3D RMS
Time Accuracy: 20ns
Tilt surveying: < ±2.5cm, within 60° tilt range
AR Stakeout:
– 8mm+1ppm Horizontally
– 15mm+1ppm Vertically
Laser Tilt Measurement: ≤5.5cm (5m range, ≤60°tilt in Laser mode)
DATA FORMAT
Data output format:
– NMEA-0183
– RINEX 3.02/3.04
– Binary format *.xyz
Data update rate: 1～50Hz selectable
Correction data format: RTCM v3.3/3.2/3.1/3.0
Supported protocols: Ntrip client, Ntrip Server, Ntrip Caster, TCP, UDP
COMMUNICATION
UHF modem1:
– Working range: 5km – 15km2, in ideal environments
– Frequency range: 410-470MHz
– Protocol (TX & RX): LoRa
– Protocol(RX):TRIMATLK, SATEL,TRANSEOT,TRIMMARK3, etc.
– Channel spacing: 25KHz
– Transmit power: 0.5W~2W selectable
Bluetooth: BT4.0 dual mode
NFC: Support NFC connection
WiFi: 802.11 a/b/g/n/ac
Interface:
– 1 Type-C interface for data transmission and charging
– 1 SMA connector for UHF antenna
VISUAL SENSOR
Sensor type: Camera
Pixel: Global shutter with 2 MP
Frame: 30 fps
FOV: 75°
Feature: Starlight-grade camera, HD capture in weak light environment
LASER SENSOR
Range: 10m
Accuracy: (3-5)mm + 1ppm
Measuring Frequency: 2Hz
Laser Injection Power: 2mW~3mW
Laser Tilt Measurement: ≤5.5cm (5m range, ≤60°tilt in Laser mod
USER INTERACTION
Front panel:
– 3 LED indicators indicating satellite tracking, differential data transmission and power
– 1 button for power on/off
WebUI:
– Accessible via Wi-Fi
– Support configuration, status checking, data transfer, data storage and system upgrade
ELECTRICAL
Power consumption: 1.8 W3
Input voltage: DC 5-15V
Battery:
– 4200 mAh, up to 12 hours working time
– Fast charge of 3 hours charging time DATA FORMAT
PHYSICAL
Size: Φ107 mm × 58.7 mm
Weight: 547 g
Storage: 8 GB4
Housing material: Magnesium-aluminum alloy
ENVIRONMENTAL
Working temperature: -40 ℃ to + 65 ℃
Storage temperature: -55 ℃ to + 85 ℃
Humidity: 100% non-condensing
Waterproof & dustproof: IP67
Drop: Designed to survive a 2m drop onto concrete
Note:
1. The enhanced UHF base is not compatible with normal UHF rovers on the market. For different user needs, SingularXYZ also provides normal UHF as an option compatible with UHF of other brands. Please clarify your requirements when placing the order.
2. The maximum working range of the enhanced UHF modem is 15km in ideal environments.
3. The power consumption varies with the different work modes.
4. Storage can be expanded to 32GB according to user demands.
All specifications are subject to change without notice.
